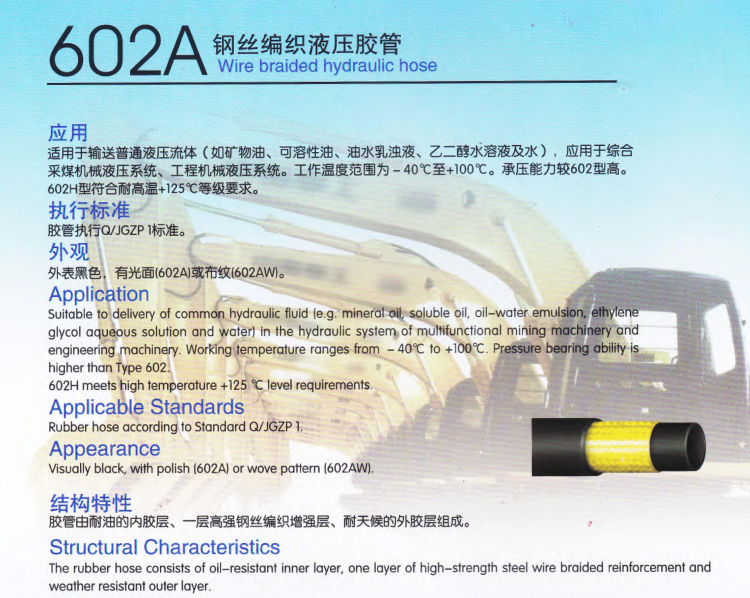

應用

適用于輸送普通液壓流體(如礦物油、可溶性油、油水乳濁液、乙二醇水溶液及水),應用于綜合采煤機械液壓系統、工程機械液壓系統。工作溫度范圍為-40℃至+100℃。承壓能力較602型高。

602H型符合耐高溫+125℃等級要求。

執行標準

膠管執行Q/JGZP 1標準。

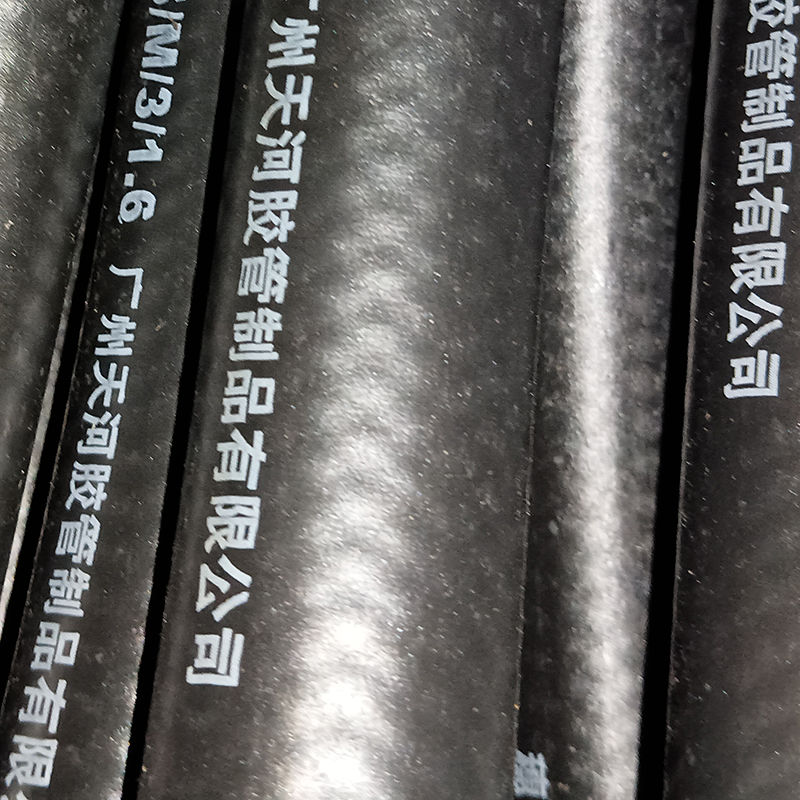

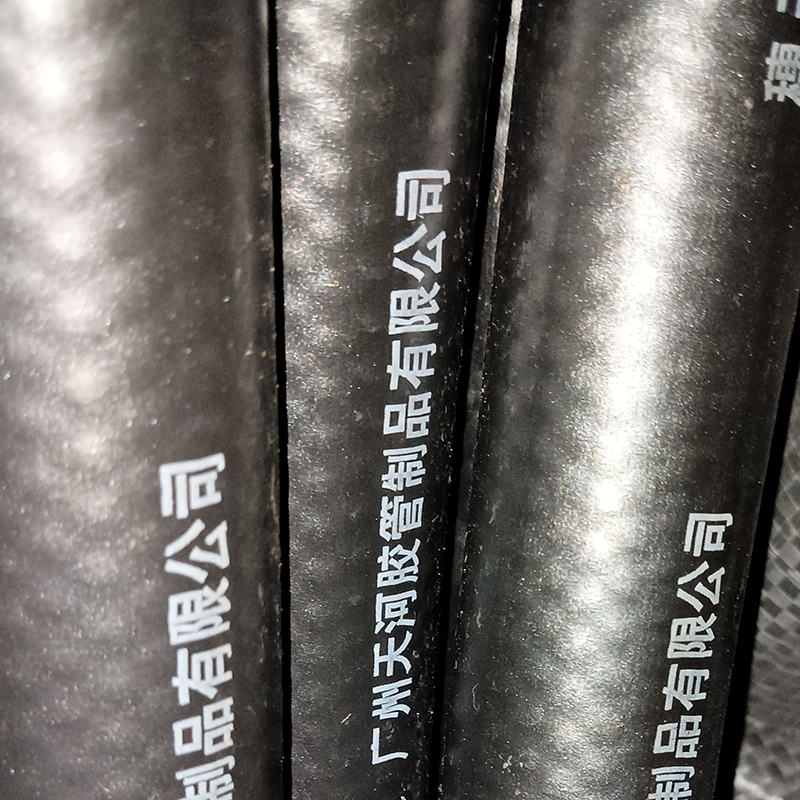

外觀

外表黑色，有光面1602A\或布紋1602AW)。

Application

Suitable to delivery of common hydraulic fluid le.g. mineral oil, soluble oil, oil-water emulsion, ethylene

glycol aqueous solution and water) in the hydraulic system of mulifunctional mining machinery and

engineering machinery. Working temperature ranges from-40℃ to +100℃. Pressure bearing ability is higher than Type 602. 602H meels high temperature +125 ℃ level requirements.

Applicable Standards

Rubber hose according to Standard Q/JGZP 1.

Appearance

Visually black,with polish 1602Al or wove paitern (602AW).

結構特性

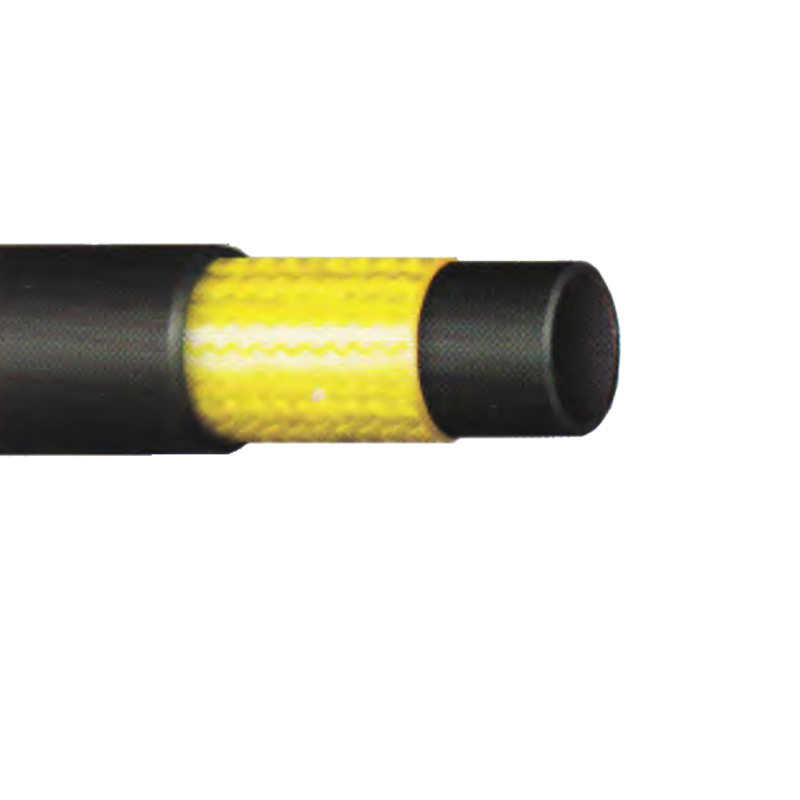

膠管由耐油的內膠層、一層高強鋼絲編織增強層、耐天候的外膠層組成。

Structural Characteristics

The rubber hose consists of oil-resistant inner layer, one layer of high-strength steel wire braided reinforcement and

weather resistant outer layer.

廣州天河膠管制品有限公司是國內主要橡膠軟管專業生產企業，產品有鋼絲編織液壓膠管、鋼絲編織蒸汽膠管、汽車空調膠管、汽車加油機膠管、導靜電飛機加油膠管、纖維編纏壓力膠管等。

廣州天河膠管制品有限公司注冊商標有穗天、Suitian、天河、Tianhe及 STRH,穗天是廣州市及廣東省著名商標。
